Heat Exchanger Data Management
Heat Exchanger Data Management
Client
HYUNDAI ENGINEERING
Features

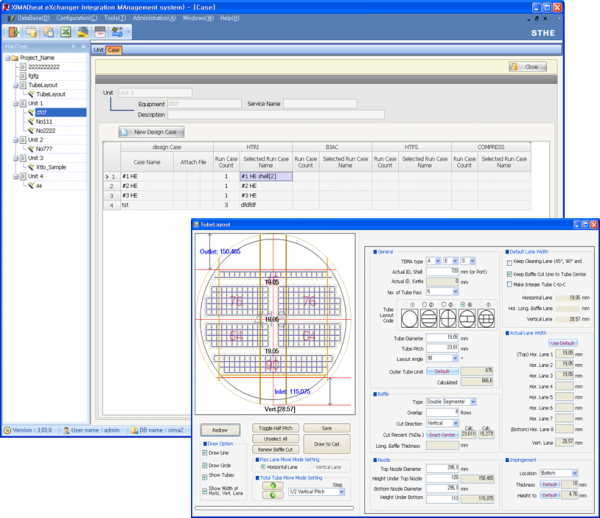

- Unit / Equipment / Design Case / HTRI Management Data Definition / B-JAC Management Data Definition
- Data Sheet Template (Shell and Tube, Air Cooler Type) / Tube layout Template Definition
- Edit & Direct Run and Data Extraction from HTRI & B-JAC F
Output
- Data Sheet for Shell and Tube Heat Exchanger (to Excel)
- TubeLayout (to AutoCAD)
- Bundle Layout DWG / Heat Exchanger Setting Plan DWG.
System Interface
- Xima interfaces with the system as below, which is a commercial program of strength design and heat exchanger.
Definition
It is the system that integrates and manages the deliverable (Data and File) in the design process and strength calculation of the heat exchanger, and automatically generates the deliverable such as the design data sheet and tube layout drawing.
